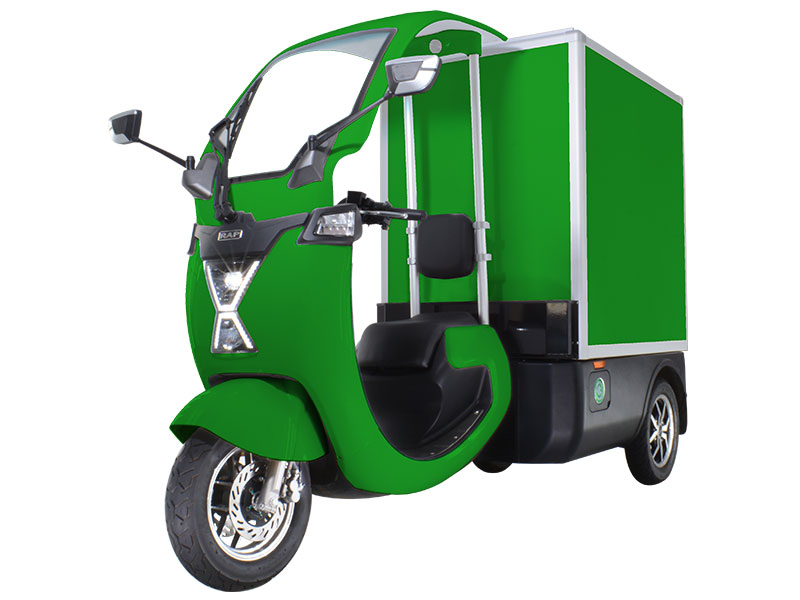

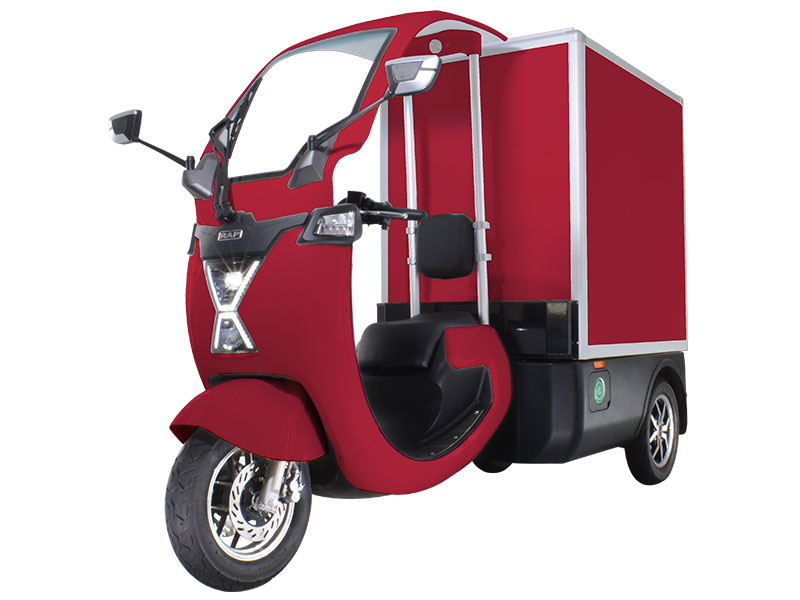

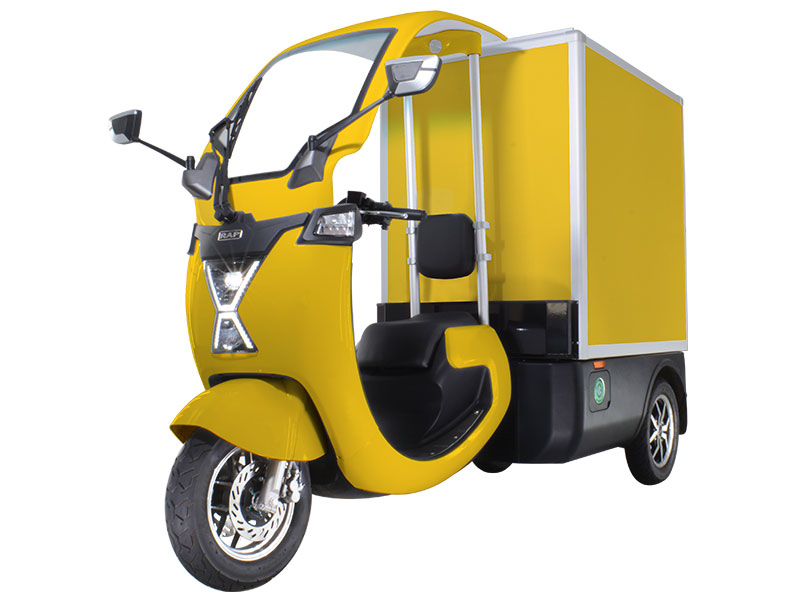

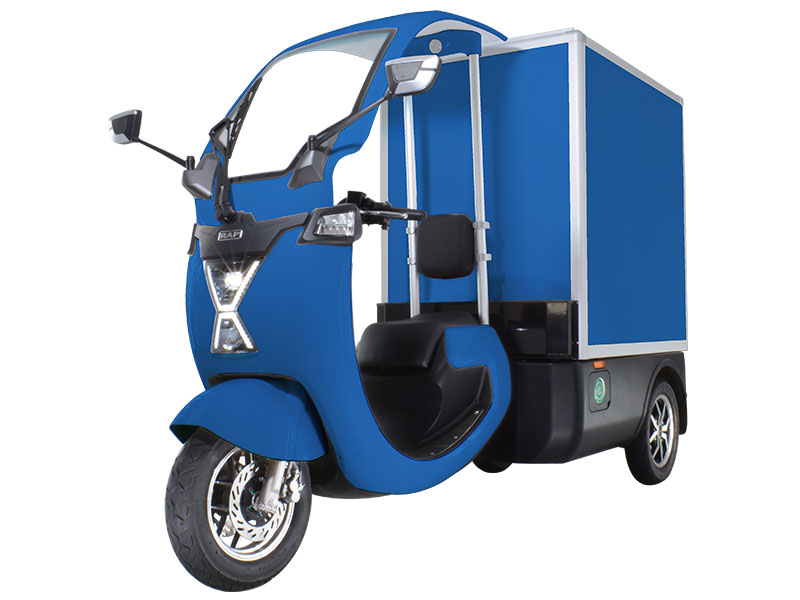

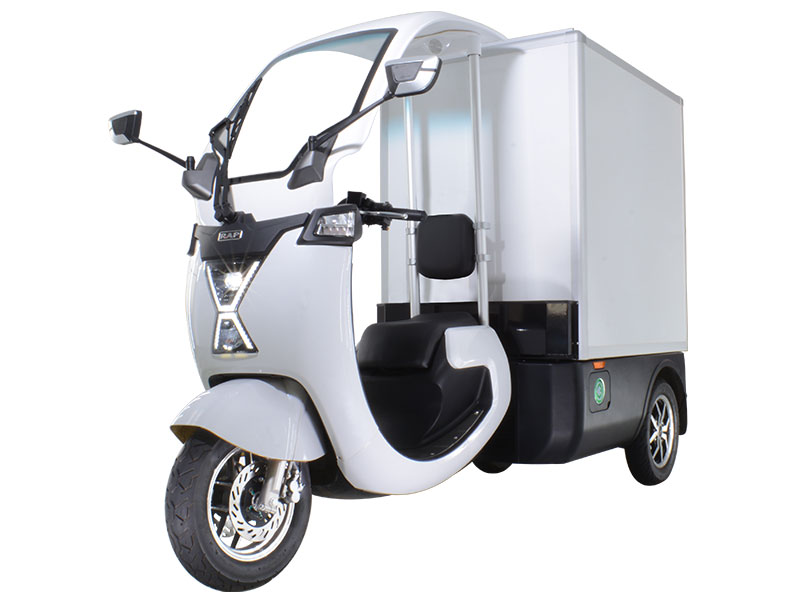

Three Wheeler Cargo Truck

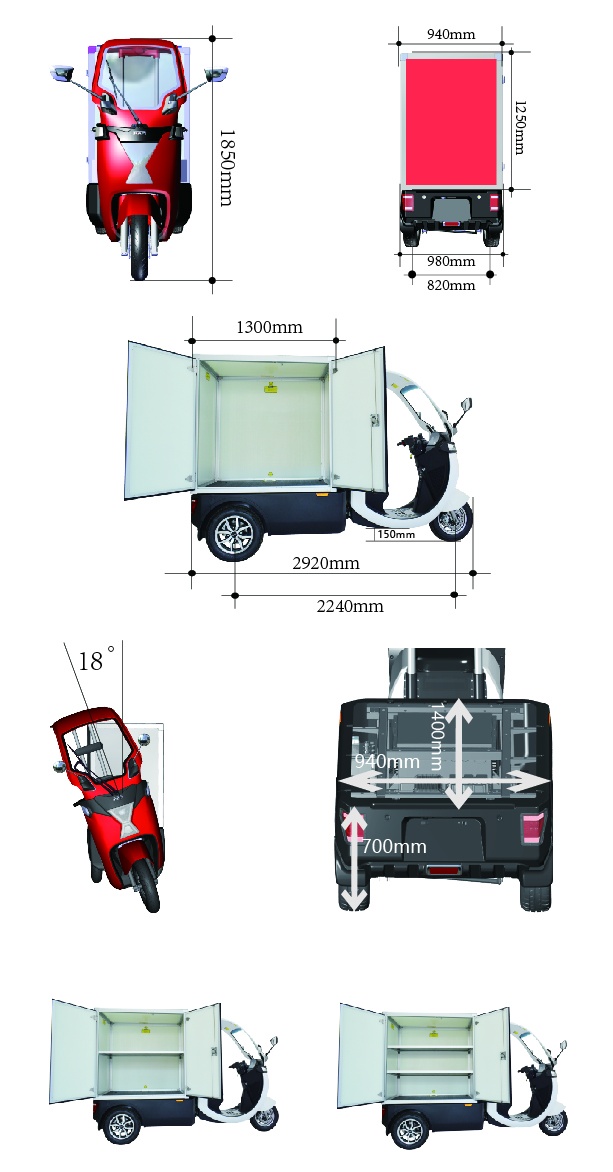

RAPSEV is committed to easy commercial delivery applications and fleet use of three wheeler cargo trucks. It is used for transfer and delivery of express services or supermarkets with an overall size of 2920×980×1850mm and volume of 1600L.
The three wheeler cargo truck is reliable and light with an aluminum alloy bearing structure and honeycomb panel. The front of the vehicle freely tilts at 18 degrees, while the rear wheels that support the container move with it. According to different container standard sizes, we also create corresponding compartments for these containers to allow for easy placement.
Technical specifications
Brand | RAP | |
Model | BANGE | BANGE II |
Category | L2e-U | L5e-B |
Loading mass | 250Kg | |
Motor type | AC asynchronous motor | PMSM |
Rated power | 3.7Kw | 5.0Kw |
Rated torque | 7.8Nm | 10.6Nm |
Battery type | LiFePO₄ | |
Rated battery voltage | 73.6V | |
Battery cell capacity | 100Ah | |
Battery capacity | 7.36 kWh | |
Charger type | On board | |
Charging voltage | 205-265V | |
Tilting system | LH/RH 18 degree | |
Charging time | 20%-80%: 1.5 h; 0%-100%: 3.5h | |
Front suspension | Hydraulic shock absorption fork | |
Rear suspension | Integral damping | |
Brake system | LH/RH hand brake | LH hand brake/Brake pedal |
Brake type | Hydraulic front/rear disc | |
Parking type | Mechanical handle brake rear wheel | |
Tire | Front :110/90-12; Rear:135/70r12 | |
Max. speed | 45km/h | 60km/h |
Climbing capacity, full load | 20% | |
Range | Up to 120Km | |
Fault detection | / | OBD |
Specifications |
|
|
BOX | Type | Honeycomb panel |
Capacity L | 1600L | |
Color | Customizable | |
Packing | 4 units-CBU/20GP; 8 units-CBU/40HC; 16 units-SKD/40HC |
