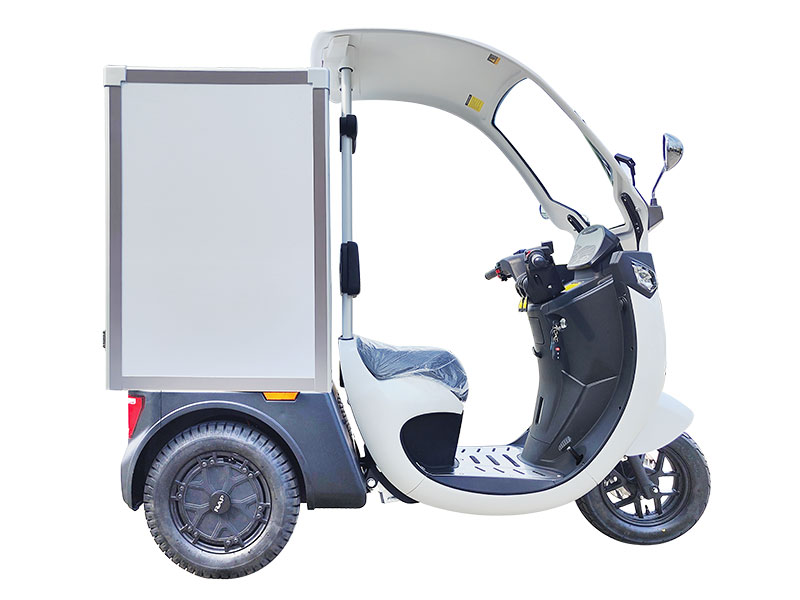

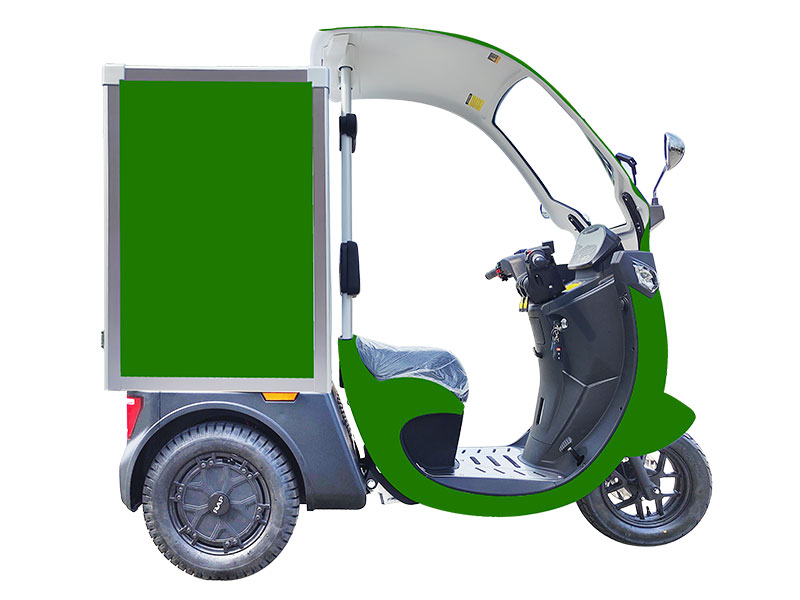

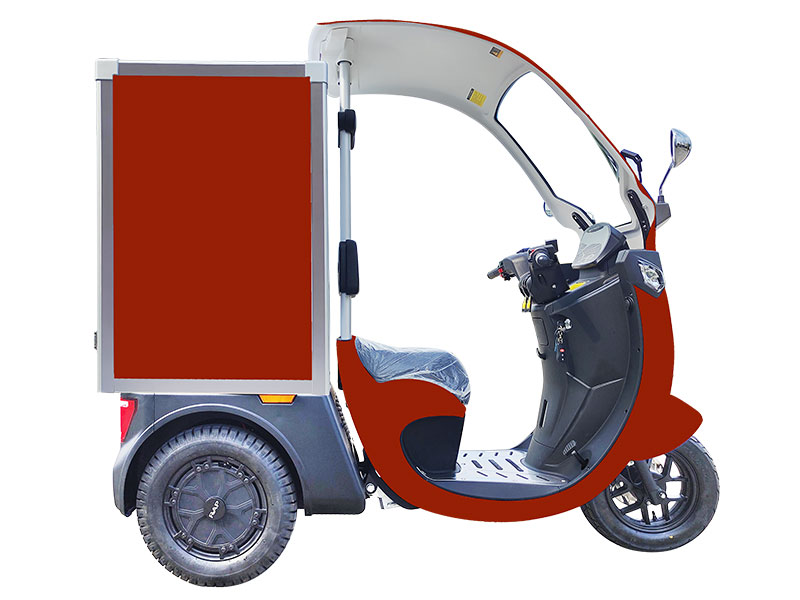

OAK II Electric 3 Wheelers
Light and fully electric, OAK II series 3 wheelers feature excellent mobility and comprehensive configuration that are as good and full as a car, while remaining as flexible as motorcycles. Compared with the Bange series electric 3 wheeler, this series has a smaller size with a larger volume of 500 L.
With better loading capacity and maximum speed than OAK series, the OAK II series electric 3 wheelers, produced to EEA standards, can carry goods as heavy as 115 kg and run at a speed ranging from 0-70 km per hour, which definitely will meet your demand to run at both fast tracks and slow lanes, maximizing delivery efficiency.
The OAK II series electric 3 wheelers have OBD (On-Board Automatic Diagnostic System) ports that provide a standardized series of diagnostic trouble codes, which allow drivers to rapidly identify and remedy malfunctions within the vehicle.
Technical specifications
| Brand | RAP | |
| Model | OAK | OAK II |
| Category | L2e-U | L5e-B |
| Loading mass | 50Kg | 115Kg |
| Motor type | DC permanent magnet synchronization | |
| Rated power | 2X2Kw | 3X2Kw |
| Battery type | LiFePO₄ | |
| Battery cell capacity | 95AH | |
| Battery capacity | 4.864 kWh | |
| Rated battery voltage | 51.2V | |
| Charger type | On board | |
| Charging voltage | 205-265V | |
| Charging time | 20%-80%: 1.5 h; 0%-100%: 3h | |
| Powertrain | Rear dual hub motor | |
| Tilting system | LH/RH 18 degree | |
| Brake system | LH/RH hand brake | LH hand brake/Brake pedal |
| Brake type | Hydraulic front/rear disc | |
| Parking type | Mechanical handle brake rear wheel | |
| Tire | 110/90-12 | 110/90-12 4.00-12 |
| Max. speed | 45km/h | 70km/h |
| Climbing capacity, full load | 20% | |
| Range | Up to 110Km | Up to 100Km |
| Fault detection | / | OBD |
| Specifications |
|
|
| BOX | Type | Honeycomb panel |
| Capacity L | 500L | |
| Color | Customizable | |
| Packing | 7 units-CBU/20GP; 14 units-CBU/40HC; 28 units-SKD/40HC | |

Information for download
